Pneumatic Lift Foam Backrest ChairESD PU chair can be used in the fields of Microelectronics, optical, aerospace, aviation and electrostatic sensitive areas HOYATO-C-5053

web：www.hoyato.com name：Shenzhen Hoyato Protective Supplies Co.,Ltd

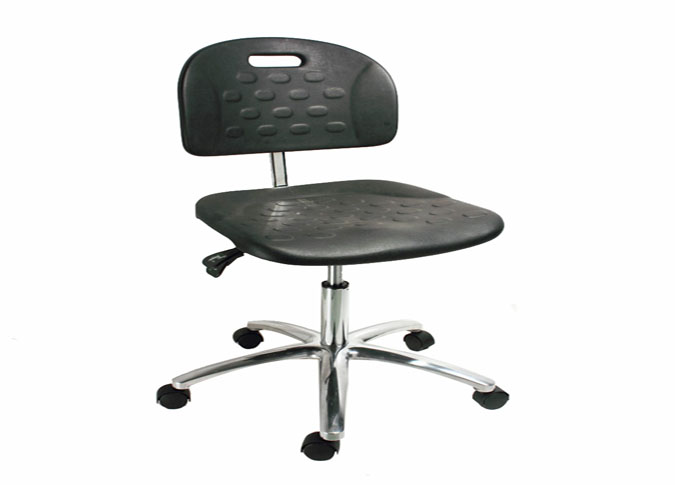

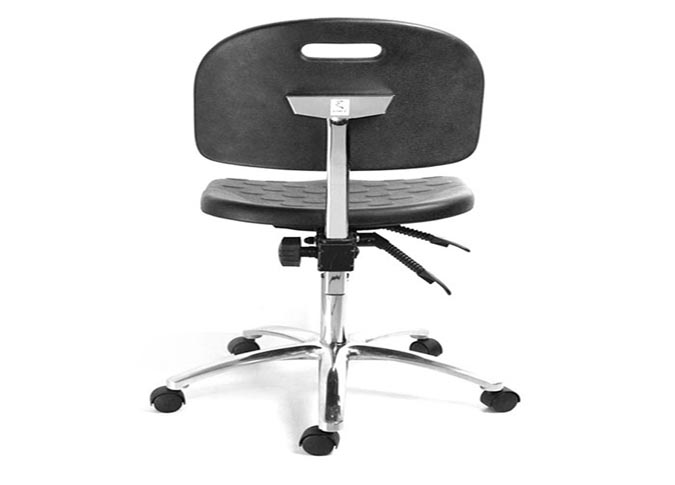

Pneumatic Lift Foam Backrest Chair
HOYATO-C-5053

产品特点

1.The material being used contains no S, NH + 3, Hg, Pb and other harmful materials, which is harmless to human body.

2. Novel structure, simple and convenient to adjust the height through oilless gas spring

3.Castor is made of carbon fiber PC with high strength and high impact resistance, resistance to fission, wear-resisting and corrosion resistance performance

4. Pentapod cover structure make the stress to the ground even, long-term use of deformation, people will not fall off the chair under 30 degree away from gravity center.

5. Equipped with pedal ring, more convinient to operate

6. Damaged assembly unit can be changed, no need to throw away the chair completely.

产品参数

项目 Item		型号：HOYATO-C-5053
A椅面 Seat	椅面 Seat材质 Material	PU聚酯发泡 PU Polyester Foam
	坐垫尺寸 Cushion Size	宽 Width450 深 Depth430mm
	靠背尺寸 Backrest Size	宽 Width420 高 300mm
B底盘 Chair Chassis	材质 Material	优质冷轧钢板冲压成型 High Quality Cold Rolling Steel Plate Ramming Formation
	功能 Function	椅背前倾调节/椅背上下调节Backrest Forerake Adjustment/Backrest Up&Down Adjustment
C气杆 Gas Spring	调节行程 Route Adjustment	410~550mm
	升降方式 Lift Manner	气动升降 Pneumatic Lift
D脚踏 Footstool	材质 Material
	表面处理 Surface Treatment
	直径 Diameter

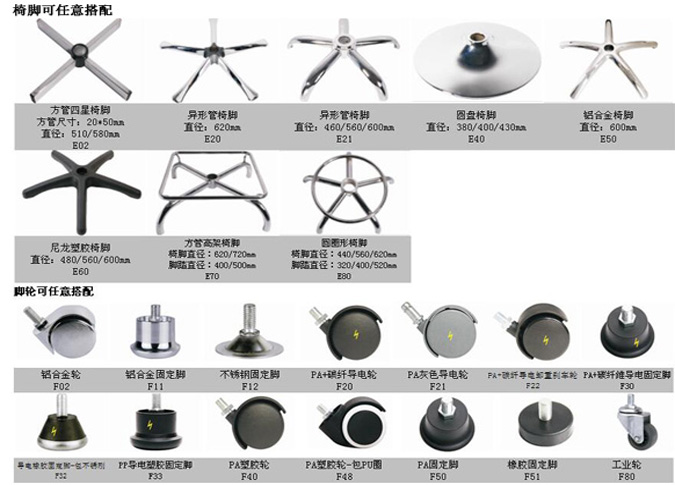

E椅脚 Chairfoot	材质 Material	铝合金压铸成型 Aluminium Alloy Die-Casting Molding
	表面处理 Surface Treatment	表面抛光 Surface Polish
	直径 Diameter	600mm
F脚轮 Castor	材质 Material	PA尼龙塑胶 PA Nylon Plastic
	类型 Type	脚轮或固定脚 Castor or Fixed Ends
K脚架 Pentapod	管型 Cast
	尺寸 Size
标配编号 The Standard No.		AF07+B13+CQ14+E50+F40
防静电无尘版本 Antistatic Dustless Version	脚轮材质 Castor Material	导电纤维+PA尼龙塑胶（2+3组合）Conductive Fiber + PA Nylon Plastic（2+3pairs）
	体积电阻 Vol. of Resistance	106~109欧姆 ohms
