ACL-600Human Body Electrostatic Discharge Device HOYATO-E-1006

web：www.hoyato.com name：Shenzhen Hoyato Protective Supplies Co.,Ltd

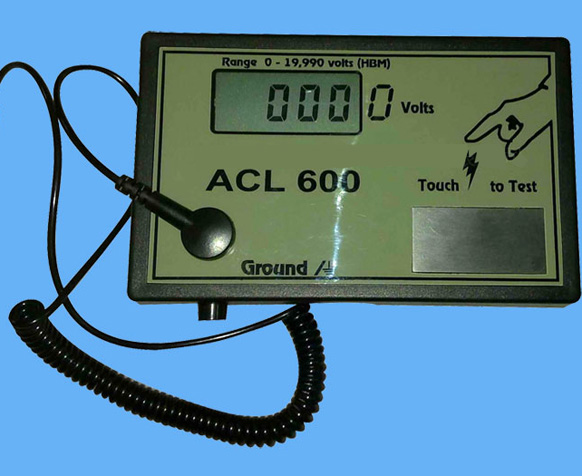

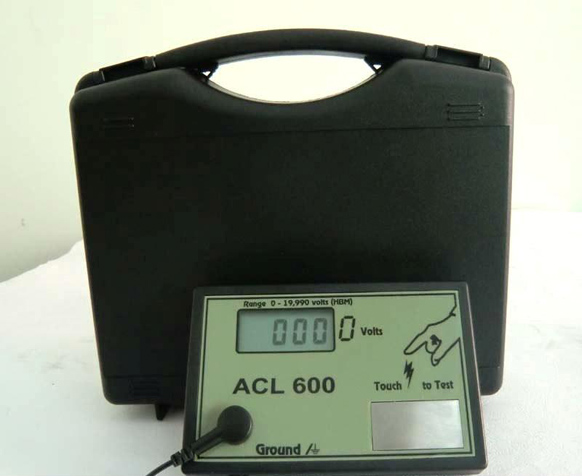

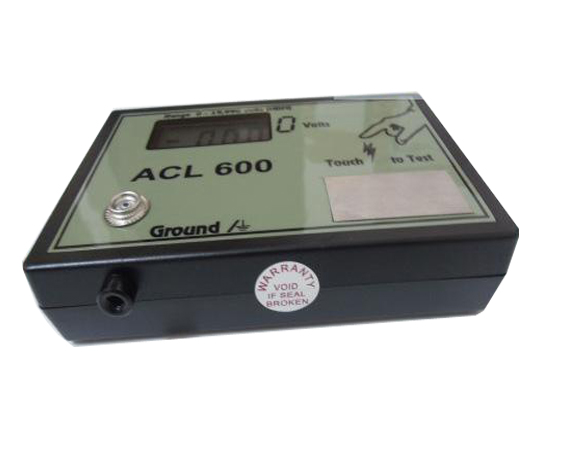

ACL-600Human Body Electrostatic Discharge Device
HOYATO-E-1006

产品特点

Human body electrostatic discharge device can be used to detect the static content human body carried, also can be used to measure the static potential difference between two person, and verify whether the wristbands, winding, grounding plug, special floor, coating, overalls, chairs works or not.

产品参数

Battery：9V PP3 alkaline battery, about 6 month lifetime.

Service Voltage: 6.5V(V<9V), show low voltage(“LOBAT”warning)

Relative Humidity: 0%~90%(No condensation)

Repeated Error:±5%

Weight:220g

Size:145mm*90mm*33mm

主要用途

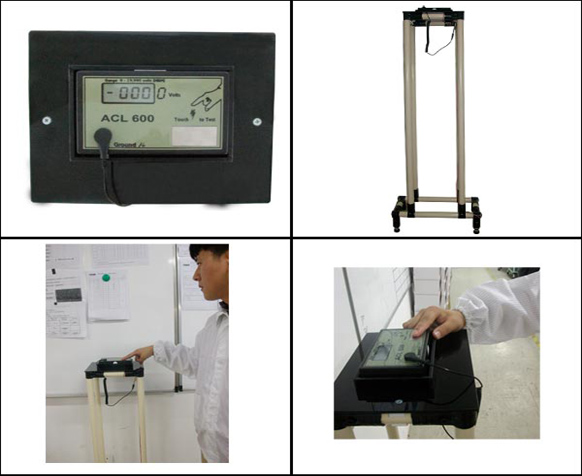

Human body electrostatic discharge device is a kind of new, unique, visually detection means,which used to detect the amount of electrostatic charge that human body carring.The instrument can be hang on the wall outside the electrostatic protection area, for fear that the charged accidentally broke into the electrostatic protection zone, also can be applied to test wether static is produced in electricity protection area on a regular basis.

Please note:

In order to ensure the accuracy of measurement, it is more important to make the staff discharge line to the security, the ACL - 600 must be used to ground, ground measurements, then observe LCD display shows the positive and negative poles of the electrostatic voltage value between 0 ~ 19990 v
