Handheld Carbonmonoxide Detector HOYATO-E-3011

web：www.hoyato.com name：Shenzhen Hoyato Protective Supplies Co.,Ltd

Handheld Carbonmonoxide Detector
HOYATO-E-3011

产品特点

Main performance and features:

1. Built in lithium ion polymer battery which can work more than 3 hours.

2. Large range of detection range.

3. Fast response.

4. Alarm and time setting function.

5. Large data storage capacity.

6. USB interface for high-speed data download.

7. No warm-up time.

8. Automatic backlight display.

9. User self calibration mode.

10. Easy to operate and safe to use.

11. Digital temperature and humidity sensor

产品参数

Light source: lasing diode (lifetime more than 100000 hours)

Flow: 0.6L.min

Counting efficiency: 100±10%@0.5μm

Certified standard: JIS-B-9921(1997), ASTM-F649-01, ASTM-F328-98(NIST can be traced)

Data memory capacity: 438 pairs or 1000pcs measured data.

Error indication: Over the maximum count, laser power attenuation, more than the calibration flow (> + 5%), battery power shortage.

Port: USB

Maximum communication rate: 12Mbps

Power supply: Rechargeable Li-ion lithium polymer battery (7.4V/2800mAh)

AC/DC adapter (Input: AC100～240V Output: DC9V/1A)

Battery Operating Time: Continuous testing time more than 6 hours.

Size: 93（W）× 46（D）× 180（H）mm

Standard Components: AC/DC adapter, dynamic sampling head, dynamic sampling head, Application software installation CD

Optional Components: external humidity sensor, micro-printer

主要用途

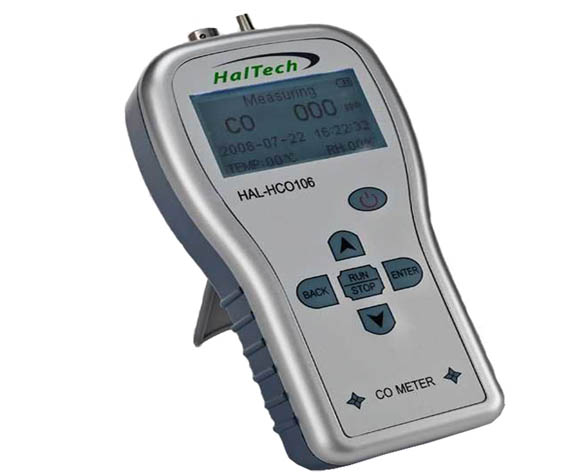

HAL-HCO106 handheld carbon monoxide tester is a new type of instrument for determination of carbon monoxide direct quantitative, it is being widely used in the measurement of industries like metallurgy, chemical, petroleum, coal, power plant, chemical industry, mine, tunnel, tunnels, underground pipelines, quantitative determination of carbon monoxide production workshop and living places, it can effectively prevent the occurrence of poisoning accidents instrument.

The instrument consists of advanced electrochemical sensor, sampling pump and microprocessor, it can real-time measure and can be directly on the LCD screen with backlight display on the tested samples of carbon monoxide% or ppm concentration. With external high precision digital temperature and humidity sensor display and compensation to improve the measurement accuracy. The data can be downloaded from USB and continuous time environmental monitoring and analysis.
